UM980 Onocoy Miner

UM980 Onocoy Miner

Regular price $411.00 USD
Regular price Sale price $411.00 USD
Sale Sold out
Shipping calculated at checkout.

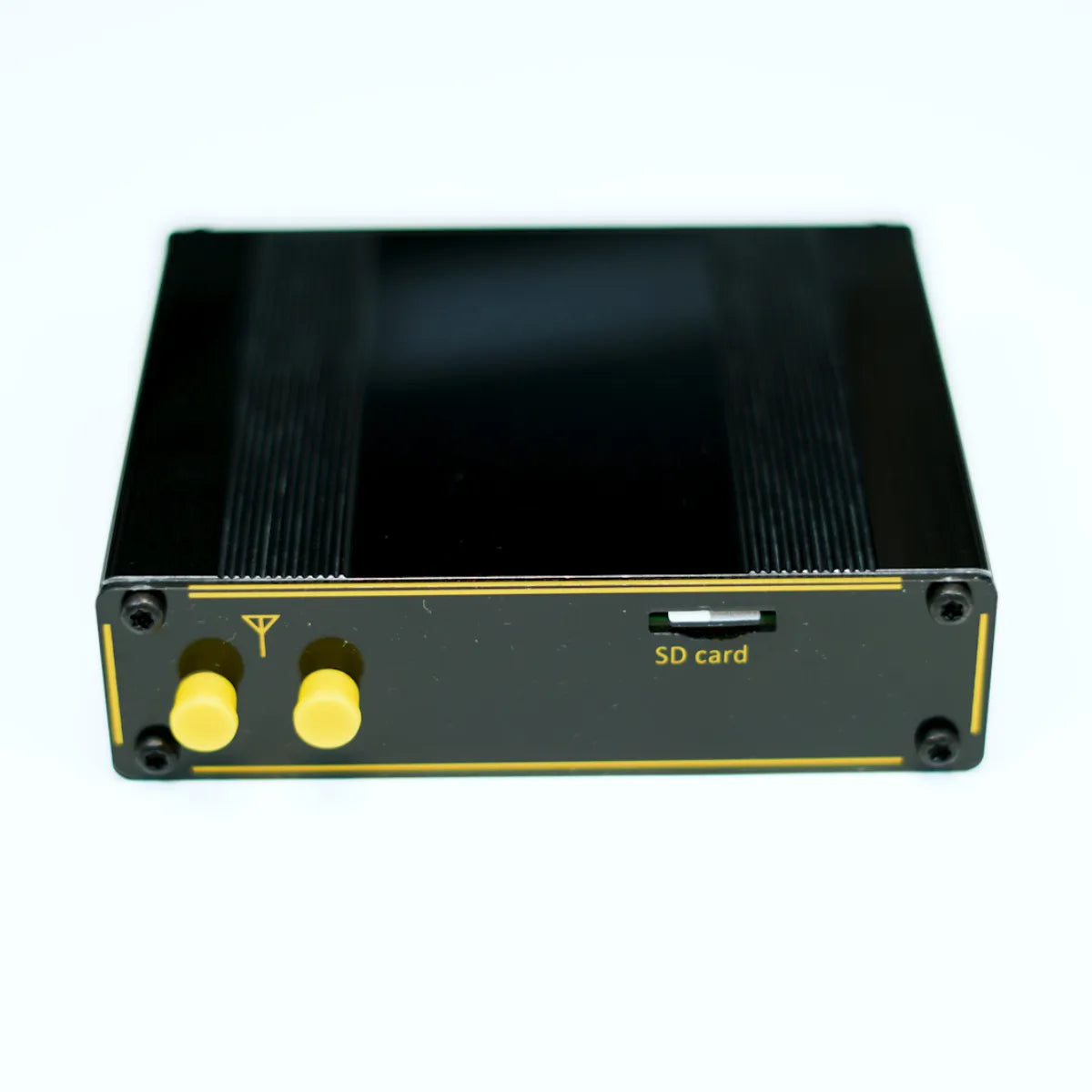

The wired UM980 Onocoy Miner is a satellite station that provides centimeter-precise location data to Onocoy’s GNSS network. It’s easy to set up with an antenna and earns you ONO tokens as a reward.

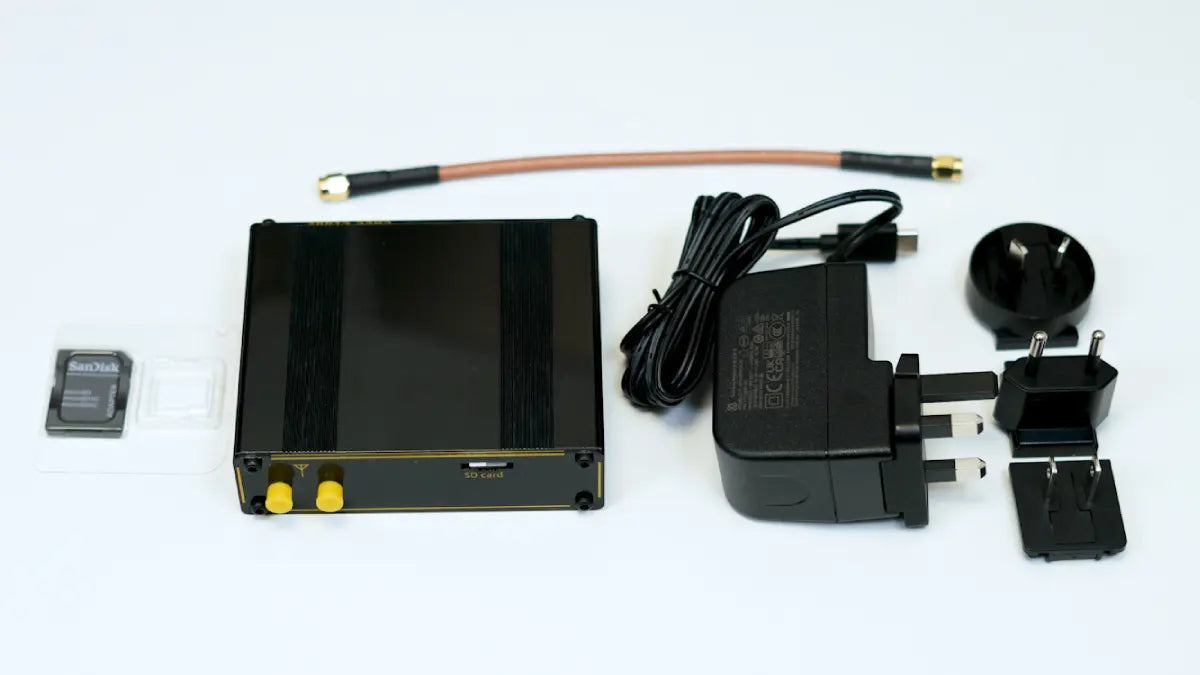

There are options to add an Antenna and power supply (USB C 5V) when buying. That makes a complete package to start mining Onocoy with.

Learn more about Onocoy here

Use code nordic for 5% off

Elevate your Onocoy mining with the Wired UM980, a robust GNSS RTK CORS station for moderate-density areas. With the 1408-channel UM980 module it can track 145 satellite signals and have been seen getting quality scores between 0.8 to 0.976. With Ethernet connection availability, PoE, and 2.4/5GHz WiFi on a Raspberry Pi 4B, it ensures stable connectivity. The station is pre-loaded with ELT_RtkBase for NTRIP/RTCM3 supporting onocoy mining.
For the more affordable wireless version of this station, see the UM980 Budget miner.

Key Features:

  • 1408-Channel Module (Nebulas IV SoC): Tracks GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS, NavIC L5 for enhanced performance.
  • Advanced Connectivity: Ethernet, PoE, 2.4/5GHz WiFi for robust placement options.
  • Robust Build: 245/265g, IP67-rated, fanless for 4-5 year durability.
  • Quick Deployment: ELT_RtkBase software ensures easy Onocoy/RTK Direct integration.
  • Antenna Compatibility: Supports ANN-MB2 (IP67, 15-40dB gain), Budget 38dB, or AllBand+ 38dB for flexible upgrades.
  • Works with a USB C 5V power supply that can be bought with the miner.

Specifications:

  • Weight: 245/265g
  • Dimensions: 110x95x30mm
  • Power Consumption: 1.4-1.6W
  • Channels/Signals: 1408 channels, multi-constellation signals

The device's price is shown after using the best discount. The device price may however differ depending on country, tax, currency conversion rate and shipping.

View full details

Video review
