Mosaic X5 Onocoy Miner

Mosaic X5 Onocoy Miner

Regular price $667.00 USD
Regular price Sale price $667.00 USD
Sale Sold out
Shipping calculated at checkout.

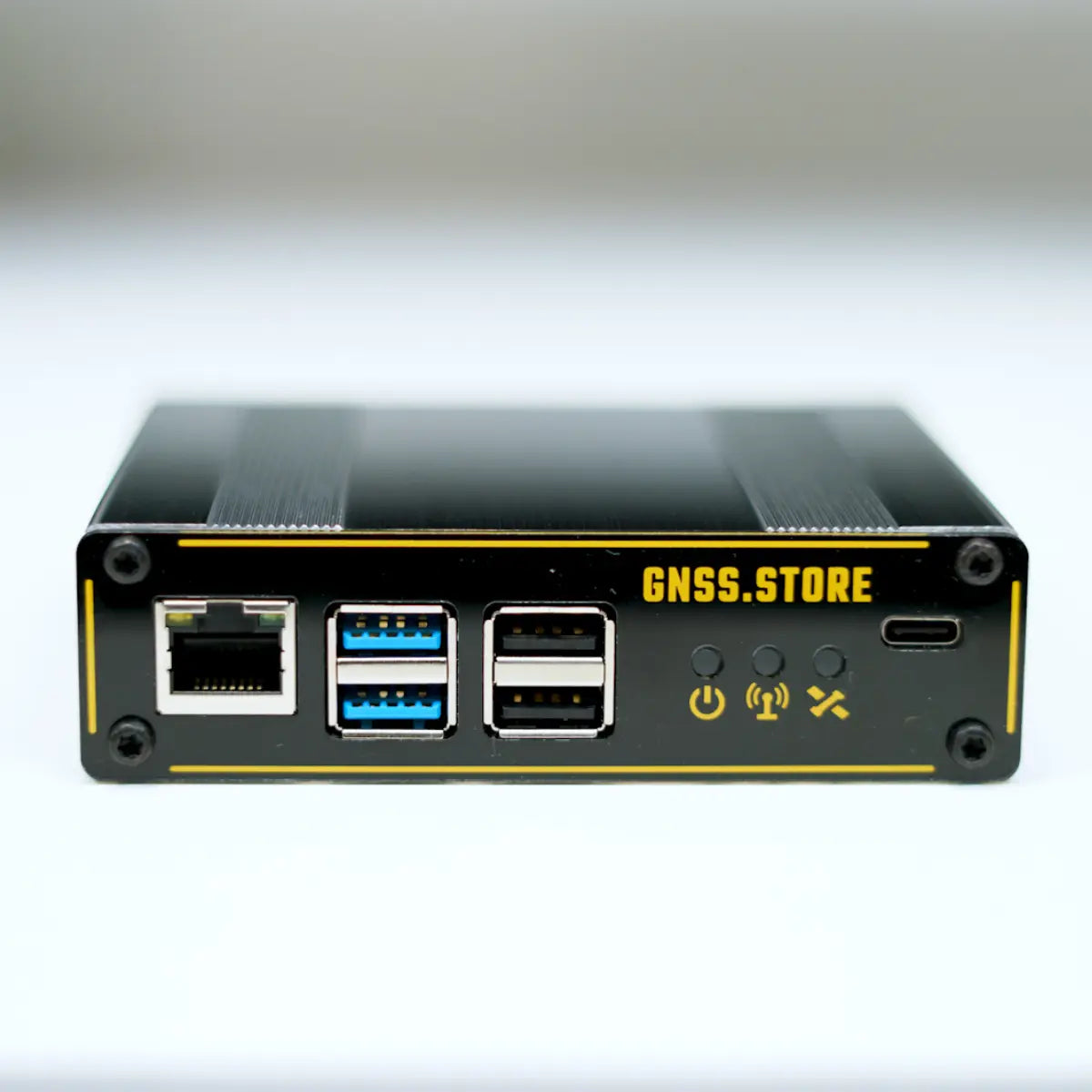

The wired Mosaic X5 Onocoy Miner is a satellite station that provides centimeter-precise location data to Onocoy’s GNSS network. It’s easy to set up with an antenna and earns you ONO tokens as a reward.

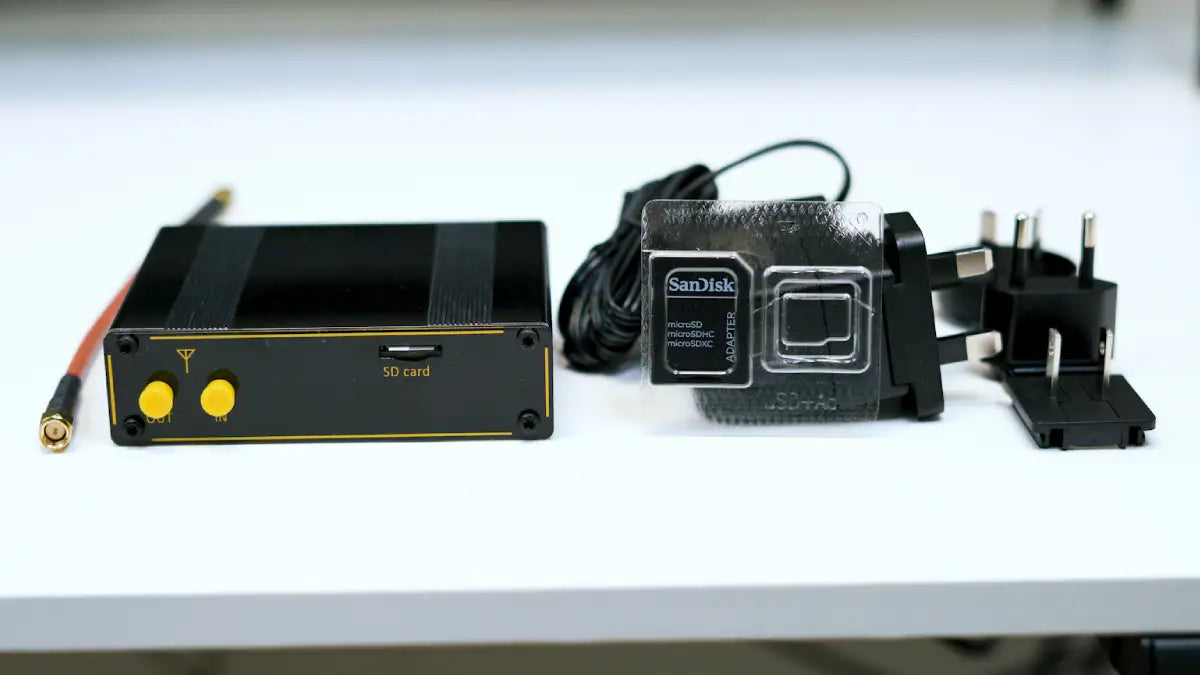

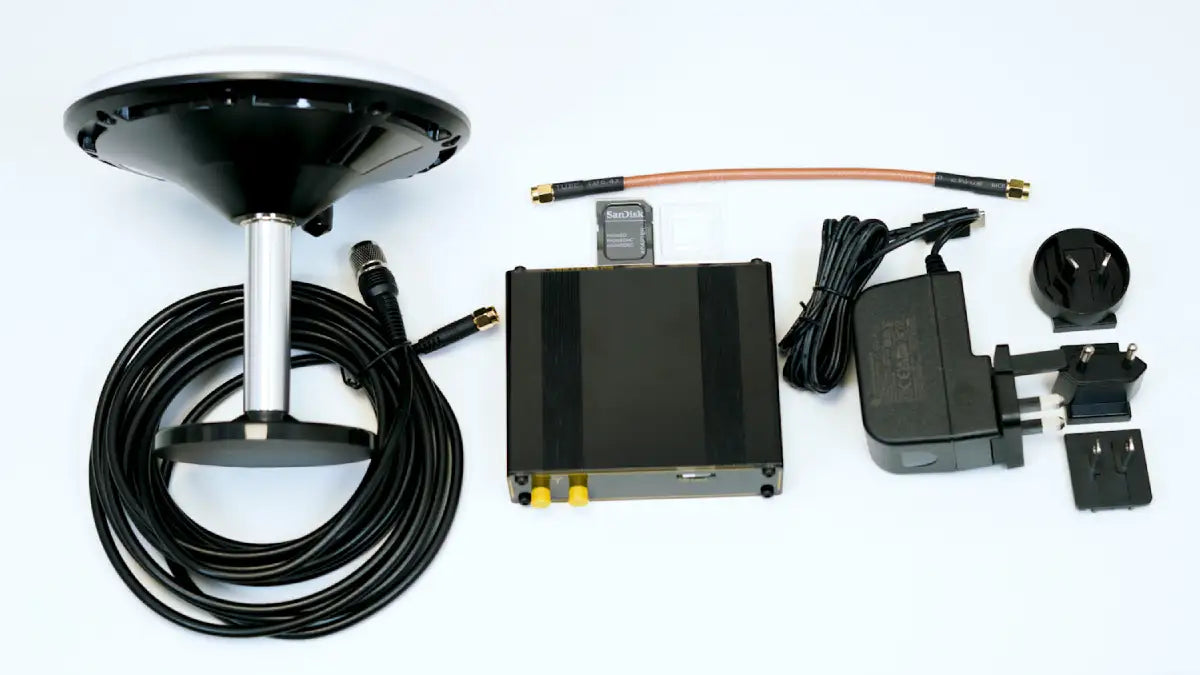

There are options to add an Antenna and power supply (USB C 5V) when buying. That makes a complete package to start mining Onocoy with.

Learn more about Onocoy here

Use code nordic for 5% off

Master Onocoy mining with the Wired Mosaic X5, a premium GNSS RTK CORS station. Its 100 Hz Mosaic X5 module with AIM+/IONO+/RAIM+ anti-jamming tech tracks 170 satellite signals and have seen quality scores between 0.92 to 0.978. This makes the X5 having the highest ONO token rewards among the stations from gnss.store. It’s built on a Raspberry Pi 4B with Ethernet connection availability, PoE, and 2.4/5GHz WiFi, which ensures connectivity in most setups. The station is pre-loaded with ELT_RtkBase for NTRIP/RTCM3 supporting Onocoy mining.
For the more affordable wireless version of this station, see the Mosaic X5 Budget miner.

Key Features:

  • High-Performance Module: 100 Hz Mosaic X5 with anti-jamming tech for high reliability.
  • Advanced Connectivity: Ethernet, PoE, 2.4/5GHz WiFi for flexible placement.
  • Durable Construction: 245/265g, IP67-rated, fanless for 3-4 year lifespan in harsh conditions.
  • Seamless Integration: ELT_RtkBase software supports Onocoy/RTK Direct with fast validation.
  • Antenna Compatibility: Supports ANN-MB2 (IP67, 15-40dB gain), Budget 38dB, or AllBand+ 38dB for flexible upgrades.
  • Works with a USB C 5V power supply that can be bought with the miner.

Specifications:

  • Weight: 245/265g
  • Dimensions: 110x95x30mm
  • Power Consumption: 1.6W
  • Channels/Signals: 100 Hz rate, multi-constellation signals

The device's price is shown after using the best discount. The device price may however differ depending on country, tax, currency conversion rate and shipping.
