Antenna Impact: How ANN-MB2, Budget 38dB, and AllBand+ Shape Onocoy Mining Performance
Why Antennas Are the Core of Onocoy Mining Success
Onocoy is a GNSS network DePIN project that gathers satellite data for a high-precision location service, delivering centimeter-accurate data for drones, agriculture, and other applications. Their network currently has over 6461 stations worldwide as of September 3, 2025. Anyone can deploy one of these onocoy miners and start contributing data to onocoy's network. In return, station deployers receive daily ONO token rewards. The reward amount depends on the signal quality of the antenna connected to the station. This guide explores how the ANN-MB2, Budget 38dB, and AllBand+ 38dB antennas can enhance your Onocoy mining performance.

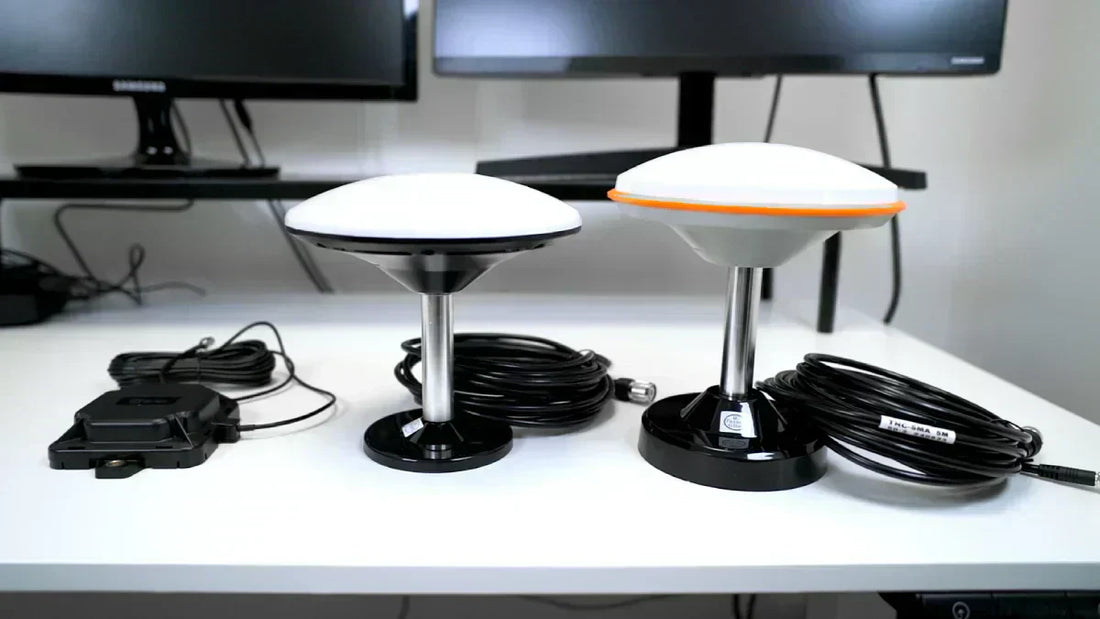

ANN-MB2: A Versatile and Accessible Foundation
The ANN-MB2 antenna, costing €60, that can be added with the Bynav M20, UM980 and Mosaic X5 onocoy miner, offers a 15-40dB gain range and supports multi-constellation signals (GPS, GLONASS, Galileo, BeiDou L1/L2/L5). At 260g and 108.5x92.9x24.7mm, its IP67 rating handles rain and dust, using about 200mA. Paired with the Onolink’s 145-signal ZED-F9P or UM980’s 145-signal module, it achieves 60-70% signal quality in open areas. In a rural setup with the Onolink, it hit 65%, but a nearby building cut 20% until the setup was raised to a clearer spot, showing placement matters. It’s a good start for low-density areas but needs care in tougher spots.
Budget 38dB: A Stable Middle-Tier Upgrade
The Budget 38dB antenna, an €115 add-on, delivers a steady 38dB gain with multipath rejection tech. Weighing around 275g with an IP67 rating, it includes a 5m TNC-K to SMA cable and boosts the M20’s 126-signal module to 75-80% signal quality. In a suburban M20 test, it raised rewards by 10% after aligning it with a clear horizon (e.g., 1.0-1.5m from obstacles). It’s solid for mid-density zones but falls short of premium options in busy areas.
AllBand+ 38dB: The Precision Powerhouse for Elite Performance
The AllBand+ 38dB antenna, an €189.99 upgrade perfect for the Budget Mosaic X5 Onocoy Miner or NTRIP-X, provides a stable 38dB gain with advanced multipath suppression. At 400g and Ø160x66.5mm with an IP67 rating, it uses about 300mA and offers sub-centimeter accuracy (0.8 cm + 1ppm). Paired with the Mosaic X5’s 100 Hz rate and anti-jamming tech or the NTRIP-X’s 145-signal module, it hits 90-95% signal quality. In a city center the Mosaic X5 setup, beat nearby miners by 15%, reaching 92% signal quality, proving its edge in crowded zones.
Real-World Performance Insights from Setups
Antenna choice depends on your location and miner. A countryside Budget UM980 Onocoy Miner with ANN-MB2 gave 68% signal quality, dropping 15% near a forest until raised 2.5m. The Budget 38dB antenna with Bynav M20 Onocoy Miner in a small town added 12% data points after adjusting its angle. The AllBand+ with NTRIP-X in the city hit 93%, gaining 18% over baseline with careful placement. Match antennas to miners for best results.
Optimizing Your Antenna Setup for Maximum Impact
Good placement is key. Use the Onocoy explorer’s sky visibility map to find a 360-degree view above 10° elevation, avoiding reflective surfaces like metal roofs. Mount on a 2-3m pole, securing it against wind with a base or wires. A loose mount have been seen to loose 5% signal quality until a €20 brace was added. Clean debris from the antenna and check connections regularly for best performance. See the Onocoy Miner Setup Tutorial for setup tips to get started.
Long-Term Considerations and Future-Proofing
Antennas wear over time. The ANN-MB2 have been seen to fade 8% in signal quality after two years in harsh weather; upgrading to Budget 38dB regained 10%. The AllBand+ lasted over three years at 93% with monthly checks. Inspect regularly to avoid drops in quality, like clearing leaves or tightening mounts. Plan upgrades based on your area’s needs.
Your Antenna Journey: Tailoring Choices to Your Goals
Your antenna shapes your Onocoy success. The AllBand+ 38dB excels at 90-95% signal quality with Budget Mosaic X5 Onocoy Miner or NTRIP-X in busy areas. The Budget 38dB antenna lifts Bynav M20 Onocoy Miner to 75-80% in mid-tier zones. ANN-MB2 gives 60-70% with Onolink Onocoy Miner or Budget UM980 Onocoy Miner in sparse regions. There have been setups that grew from 65% with ANN-MB2 to 93% with AllBand+, adapting to nearby competition. Learn more at our Onocoy Miner Info Hub on nordiccrypto.io.
